This is a free leather map case pattern designed as a simple satchel-style carry for maps, documents, or notebooks. The printable PDF template is suitable for hand-cut leather projects and includes a full build video showing the assembly process.
Download the FREE PDF Template Set below. PLEASE NOTE – You will need Adobe Acrobat or an equivalent PDF file viewer. You will not be able to edit the free PDF file or open it in a PDF editor.

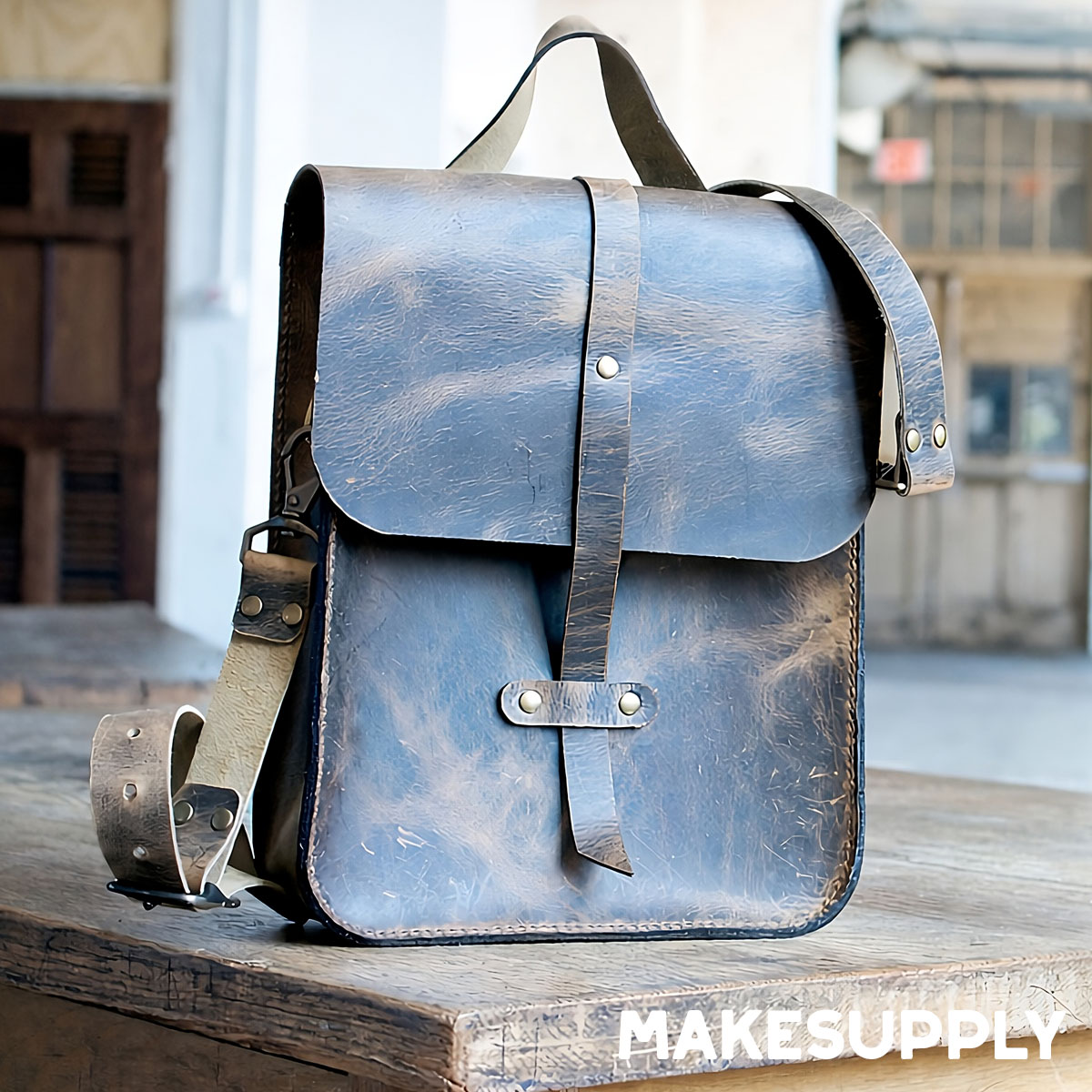

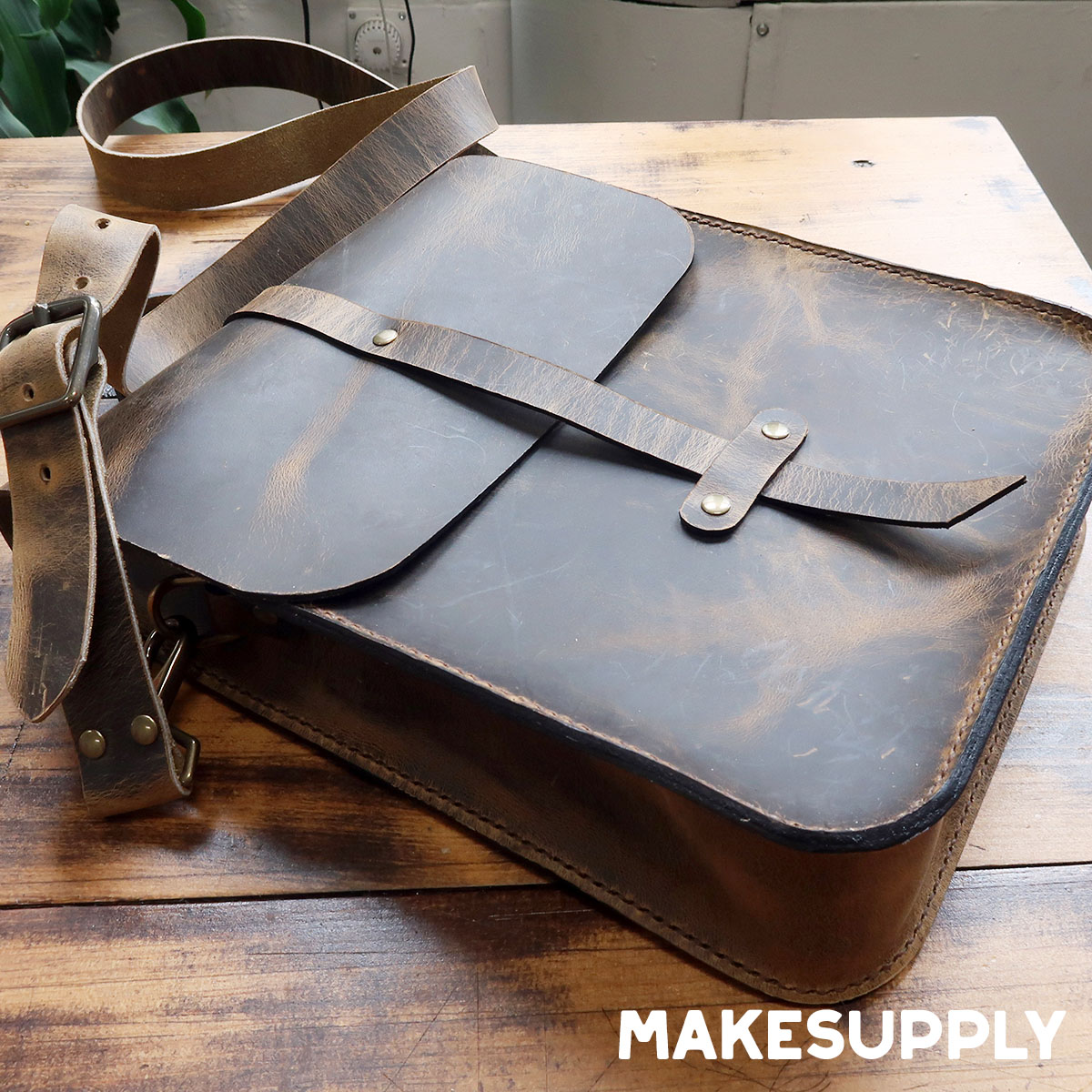

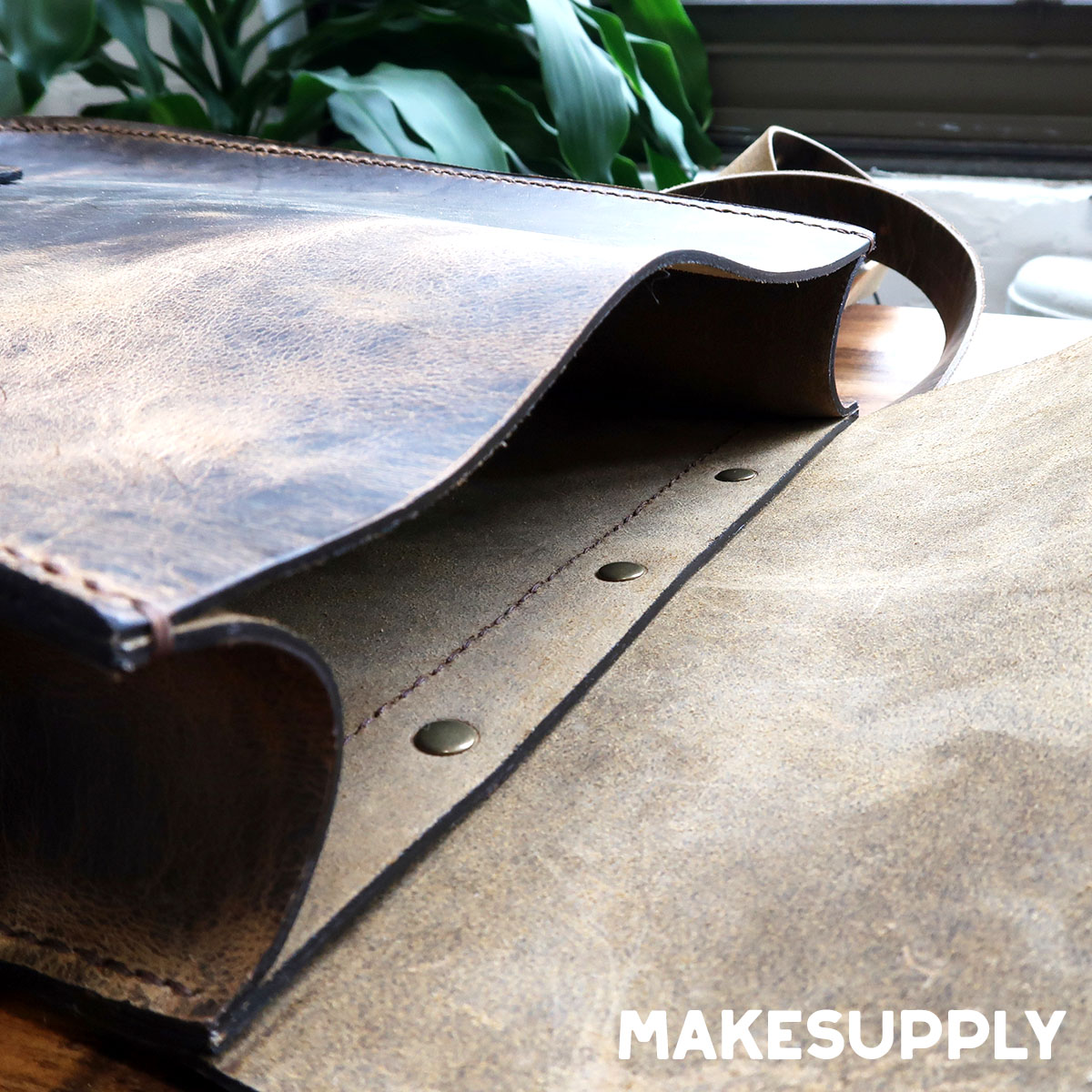

Finished Map Case Examples
Template Download Options
⬇️ DOWNLOAD FREE PDF PATTERNFree Map Case Satchel PDF - 444.58 KB
Usage Note: You are free to use this design to create and even sell the end product. However, you cannot redistribute this template in any form.
👇 Get notified when new free templates drop! 👇
Video Instructions
Inventory of Tools
- 36″ x 24″ Self Healing Cutting Mat
- 110-Lb Card Stock Paper
- No.2 X-ACTO Knife
- Cordless Dremel
- Barge Cement
- Elmers Glue Stick
- Masking Tape
- Generic tape
- Round Hollow Punch Set
- C.S. Osborne Scratch Awl
- Seiwa 5mm Diamond Stitching Chisels – 6 prong / 2 prong
- John James Stitching Needles
- Generic Sandpaper – 320 grit
- Black Matte Edge Paint
- Ritza Tiger Thread – .8mm (Dark Brown)
- Barry King Maul (24 oz)
- Punching Slab
- Binder Clips
- 1.25″ Center Bar Buckle (Antique Brass)
- Double Cap Rivets (Antique Brass)
- 1.25″ Swivel Lever Snaps (Antique Brass)
- 3/4″ D-Rings (Antique Brass)
- C.S. Osborne 1″ Bag Punch
- BG Setter Hand/Foot Press
Leather Selection Suggestions
In this video we used an 4.5oz/5.25oz oil tan leather called “Crazy Horse Leather” from Acadia Leather. This design is pretty flexible with the type and thickness of leather you can use. I would suggest up to 8oz for the body pieces.
Guidelines of Template Usage
We put a lot of time and effort into producing these templates, videos, and blog posts. Please do not distribute the template you have purchased from Makesupply. It’s not cool and hurts our feelings (CRY EMOJI). However, you are free to do whatever you want with the end product you create using the template design. Even sell them on Etsy!
5 comments
pls send me the pdf file
Where do you get the paper refills for the Midori Passport Size? 3-1/2 x 5-1/2″ don’t work of course. I think I need 3 x 5″??
Do you have or sell waxed thread .08 mm?
Just wanted to say thank you for sharing this bag pattern.
I’ve made my version with some adjustments and it turned out to be a really great bag.
Keep up with the good work, and thanks again!
Awesome! I love hearing about custom modifications thanks for trying it out.
